Description
PRODUCT FEATURES IP67 Flange

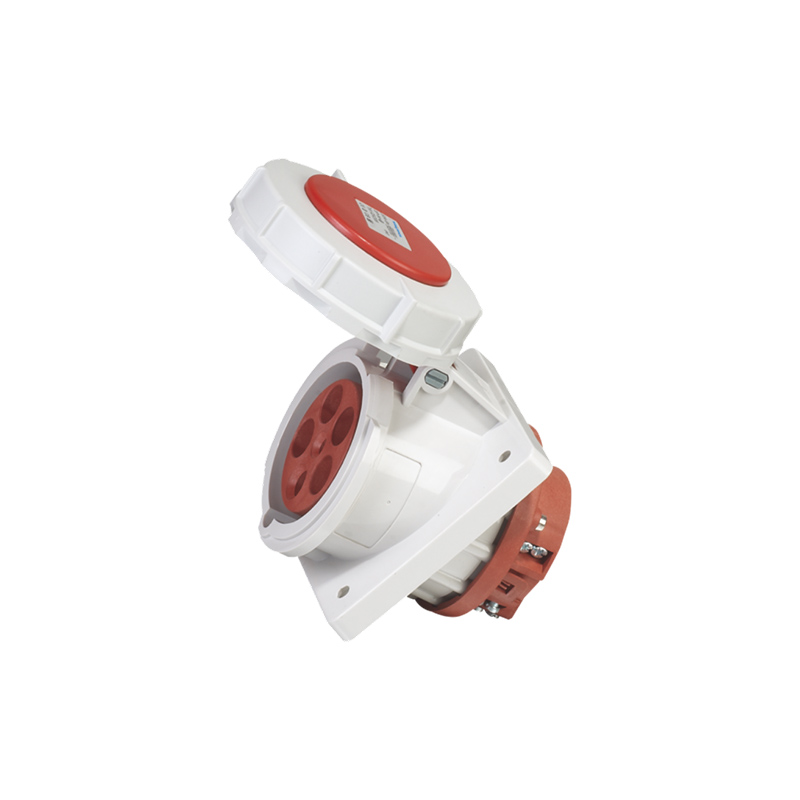

IP67 Flange Size 73.5*64mm(16A,3P) 100*92mm(16A 4P/5P 32A) Panel Mounted Socket
|
MODEL |
16 |
345 |
SP1474 |
>SP1475 |
>SP1476 |
|
SP1480 |
SP1481 |
SP1482 |
|
32 |
345 |
SP1501 |
SP1502 |
SP1503 |
SP2223 |
SP1507 |
SP1567 |
SP1568 |
|
|
63 |
345 |
SP2179 |
SP2180 |
SP2181 |
|
SP206 |
|
|
|
|
125 |
345 |
SP210 |
SP3575 |
SP212 |
|
SP213 |
|
|

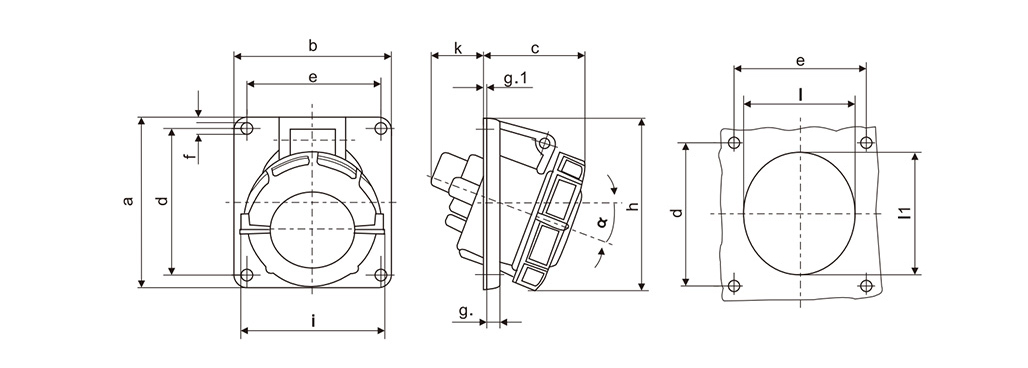

TECHNICAL DATA
|
Amp |
16 |
32 |
63 |
125 |
||||||||
|
Poles |
3 |
4 |
5 |
3 |
4 |
5 |
3 |
4 |
5 |
3 |
4 |
5 |
|
a |
73.5 |
100 |
100 |
100 |
100 |
100 |
110 |
110 |
110 |
114 |
114 |
114 |
|
b |
64 |
92 |
92 |
92 |
92 |
92 |
106 |
106 |
106 |
110 |
110 |
110 |
|
c |
52 |
59 |
62 |
64 |
64 |
64 |
83 |
83 |
83 |
75 |
75 |
75 |
|
d |
60 |
85 |
85 |
85 |
85 |
85 |
85 |
85 |
85 |
90 |
90 |
90 |
|
e |
52 |
77 |
77 |
77 |
77 |
77 |
77 |
77 |
77 |
90 |
90 |
90 |
|
f |
5.3 |
5.3 |
5.3 |
5.5 |
5.5 |
5.5 |
6.5 |
6.5 |
6.5 |
6.2 |
6.2 |
6.2 |
|
g. |
7 |
8 |
8 |
8 |
8 |
8 |
12 |
12 |
12 |
13 |
13 |
13 |
|
g.1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
h |
84 |
103 |
105 |
109 |
109 |
113 |
115 |
115 |
115 |
125 |
125 |
125 |
|
i |
78 |
85 |
96 |
103 |
103 |
110 |
117 |
117 |
117 |
135 |
135 |
135 |
|
k |
46 |
32 |
33 |
55 |
55 |
48 |
90 |
90 |
90 |
100 |
100 |
100 |
|
l |
55 |
70 |
70 |
73 |
73 |
76 |
99 |
99 |
99 |
107 |
107 |
107 |
|
l1 |
65 |
80 |
80 |
85 |
85 |
88 |
62 |
62 |
62 |
98 |
98 |
98 |
|
α |
20° |
20° |
20° |
20° |
20° |
20° |
20° |
20° |
20° |
15° |
15° |
15° |
|
T |
|
|
|
|
|
|
3 |
3 |
3 |
|
|
|
|
Conductor Cross-Sectional Area (mm²) Min.To Max |
||||||||||||
|
|
1.5-2.5 |
4-6 |
10-16 |
25-35 |
||||||||
