IP67 Industrial Electrical Plug 16A 32A 63A Three Phase

PRODUCT FEATURES IP67 CEE / IEC Industrial Plug

SKU: IP67-IP Category: High End Type Industrial Plug Socket Product ID: 19956

Description
Additional Information

Description

PRODUCT FEATURES IP67 CEE / IEC Industrial PLUG

IP67 CEE / IEC Industrial PLUG

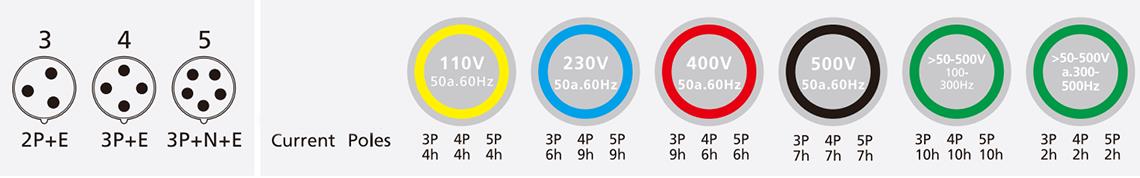

MODEL	16	345	SP277 SP280 SP286	SP278 SP281 SP287	SP279 SP282 SP288		SP283	SP284	SP285
	32	345	SP280 SP292 SP298	SP290 SP293 SP299	SP291 SP294 SP300	SP2175	SP295	SP296	SP297
	63	345	SP1570 SP1108 SP1112	SP1571 SP1109 SP1113	SP1572 SP1110 SP1114	SP2110	SP1111 SP2958
	125	345	SP3399 SP1441 SP1445	SP3400 SP1442 SP1446	SP2340 1SP1443 SP1447		SP1444 SP3173

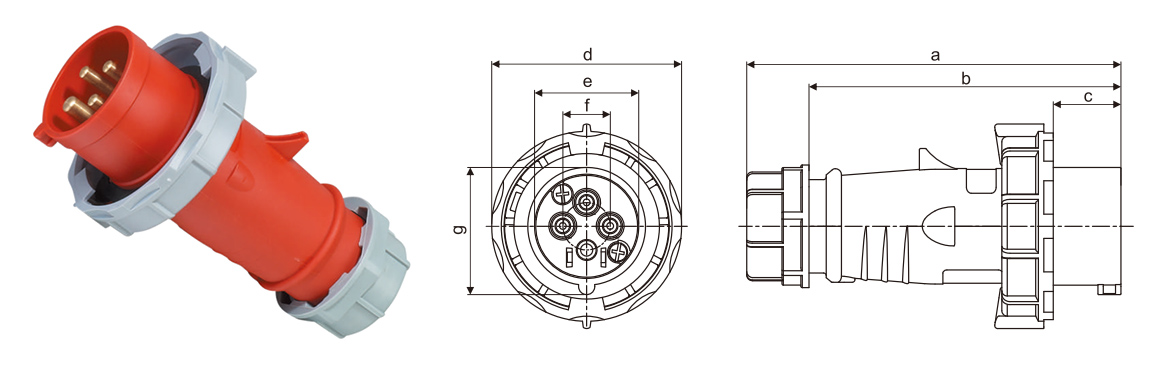

TECHNICAL DATA

Amp	16			32			63			125
Poles	3	4	5	3	4	5	3	4	5	3	4	5
a	140	142	144	173	173	177	238.9	238.9	238.9	286	286	286
b	116	119	121	144	144	148	179.5	179.5	179.5	219	219	219
c	24.7	26	27	32.5	32.5	32.5	51.1	51.1	51.1	57	57	57
d	70.2	78	87	93.3	93.3	101	112.9	112.9	112.9	131	131	131
e	38.5	43.8	50	51	51	56.5	63	63	63	75.1	75.1	75.1
f	17.5	21.5	26.5	25	25	30.3	36.5	36.5	36.5	42.5	42.5	42.5
g	47	52	60	62	62	68.7	75.3	75.3	75.3	87.2	87.2	87.2
Conductor Cross-Sectional Area (mm²) Min.To Max
	1.5-2.5			4-6			10-16			25-35
