Description
Conform to European / international standards EN/IEC 60309-2

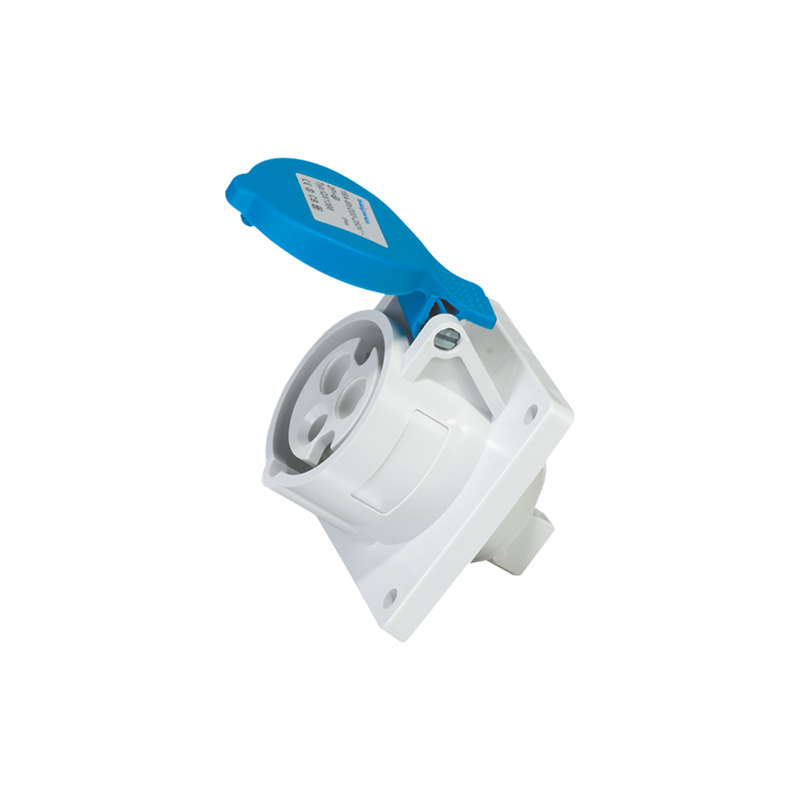

IP44 Flange Size 75*75mm(16A,32A) Panel Mounted Socket
|
  MODEL |
 16 |
345 |
SP1628/SP1365 |
SP1629/SP1366 |
SP1367 |
 SP1391 |
SP3054 |
SP3055 |
|
 32 |
345 |
SP1394 |
SP1395 |
SP1396 |
 SP1400 |
 SP1041 |
 SP1042 |
|
|
 63 |
345 |
SP1260 |
SP1261 |
SP1262 |
 SP1249 |
|
|

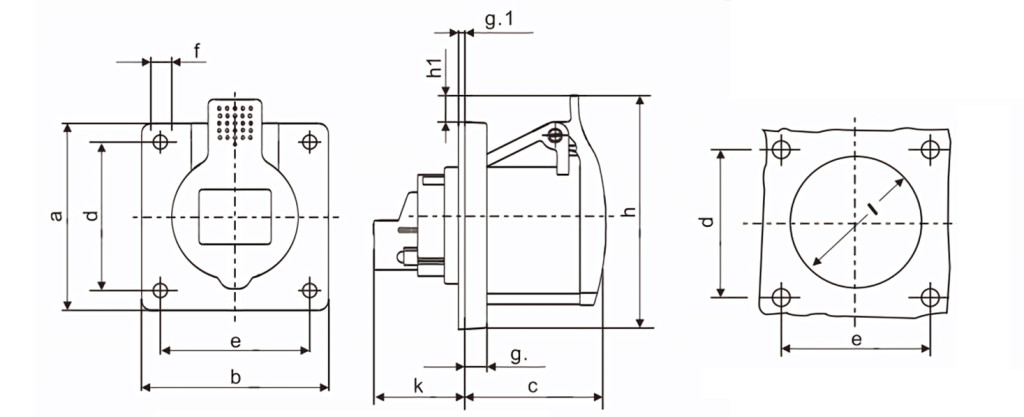

TECHNICAL DATA
|
Amp |
16 |
16 |
32 |
63 |
||||||
|
Poles |
3 |
3 |
4 |
5 |
3 |
4 |
5 |
3 |
4 |
5 |
|
a |
55 |
75 |
75 |
75 |
75 |
75 |
75 |
107 |
107 |
107 |
|
b |
55 |
75 |
75 |
75 |
75 |
75 |
75 |
100 |
100 |
100 |
|
c |
51 |
54 |
54 |
54 |
61 |
61 |
61 |
80 |
80 |
80 |
|
d |
45 |
60 |
60 |
60 |
60 |
60 |
60 |
85 |
85 |
85 |
|
e |
45 |
60 |
60 |
60 |
60 |
60 |
60 |
77 |
77 |
77 |
|
f |
55 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
6.5 |
6.5 |
6.5 |
|
g. |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
12 |
12 |
12 |
|
g.1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
h |
75 |
68 |
77 |
85 |
96 |
96 |
102 |
113 |
113 |
113 |
|
h1 |
19 |
1 |
5 |
9 |
20 |
20 |
21.4 |
5.5 |
5.5 |
5.5 |
|
k |
33 |
28 |
28 |
28 |
41 |
41 |
41.5 |
55 |
55 |
55 |
|
l |
44 |
50 |
54 |
57 |
58 |
58 |
62 |
88 |
88 |
88 |
|
Conductor Cross-Sectional Area (mm²) Min.To Max |
||||||||||
|
|
1.5-2.5 |
4-6 |
10-16 |
|||||||
