Description
Conform to European / International standards

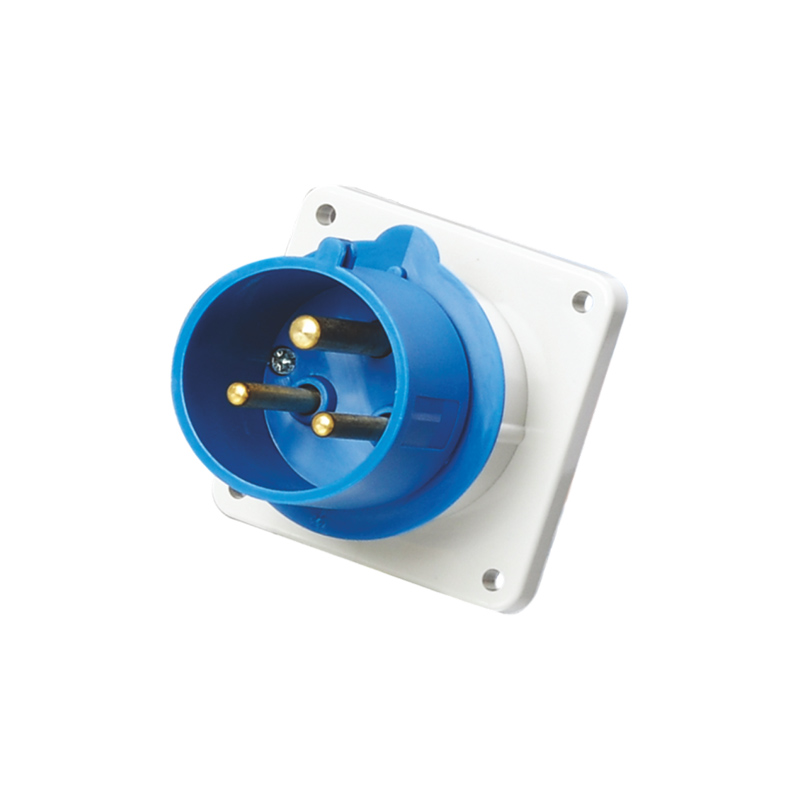

IP44 CEE / IEC Panel Mounted Plug
|
MODEL |
16 |
3 |
Sp810 |
SP812 |
SP9813 |
SP814 |
|
4 |
SP9811 |
SP837 |
SP813 |
|||
|
5 |
Sp9812 |
SP9837 |
SP815 |
|||
|
 32 |
3 |
16301 |
SP817 |
SP9815 |
 SP820 |
|
|
4 |
SP9816 |
SP838 |
SP819 |
|||
|
5 |
SP9817 |
SP9839 |
SP821 |
|||
|
 63 |
3 |
SP822 |
SP1981 |
SP9821 |
 SP824 |
|
|
4 |
SP9822 |
SP1984 |
SP1982 |
|||
|
5 |
SP91983 |
SP91984 |
SP1688 |

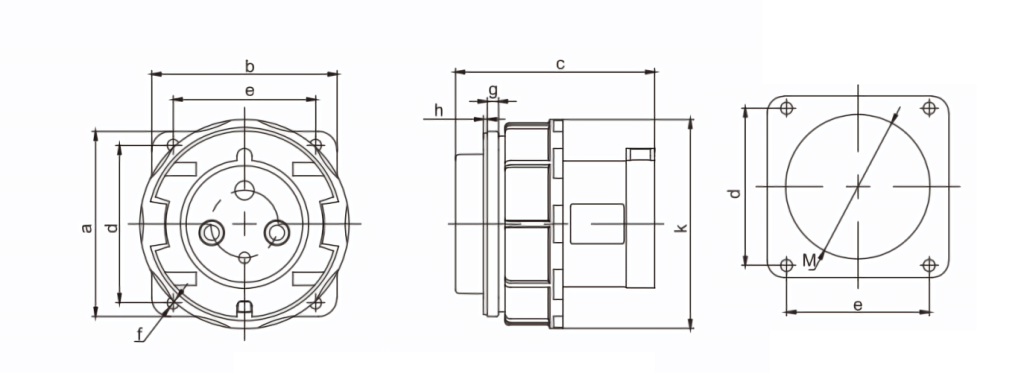

TECHNICAL DATA
|
Amp |
16 |
32 |
63 |
||||||
|
Poles |
3 |
4 |
5 |
3 |
4 |
5 |
3 |
4 |
5 |
|
a |
85.7 |
85.7 |
85.7 |
85.7 |
85.7 |
85.7 |
110 |
110 |
110 |
|
b |
85.7 |
85.7 |
85.7 |
85.7 |
85.7 |
85.7 |
106 |
106 |
106 |
|
c |
72 |
72 |
72 |
90 |
90 |
90 |
86 |
86 |
86 |
|
d |
69.5 |
69.5 |
69.5 |
69.5 |
69.5 |
69.5 |
90 |
90 |
90 |
|
e |
69.5 |
69.5 |
69.5 |
69.5 |
69.5 |
69.5 |
90 |
90 |
90 |
|
f |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
|
g. |
10 |
10 |
10 |
10 |
10 |
10 |
11 |
11 |
11 |
|
g.1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
l |
32 |
36 |
42 |
47 |
47 |
47 |
80 |
80 |
80 |
|
Conductor |
|||||||||
|
|
1.5-2.5 |
4-6 |
10-16 |
||||||
