Description

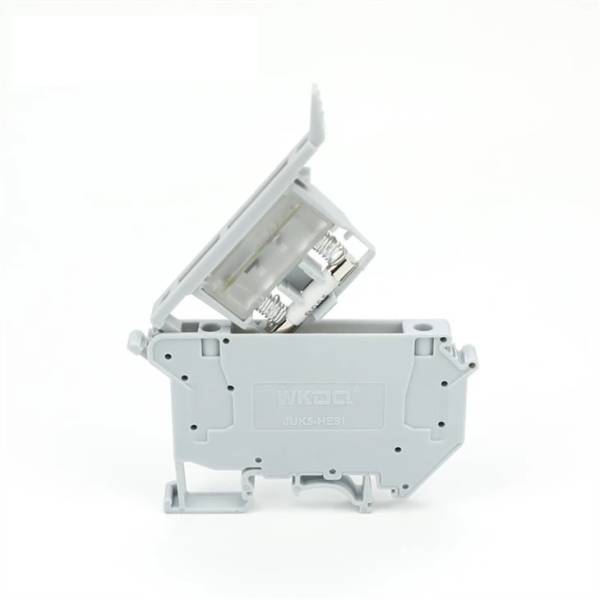

Fuse terminal block lever is a safe way to insert and extract the fuse. Ideal for those cost critical applications where you are looking for a basic fuse terminal block that will save you money.
• Made from Inflaming retarding PA 66 with Brass metal.
• It is a low cost alternative to the UK5 HESI supplied by Phoenix Contact®.
• Hinged -arm fuse blocks for better over current protection.
• The terminal blocks mount directly on DIN rail.

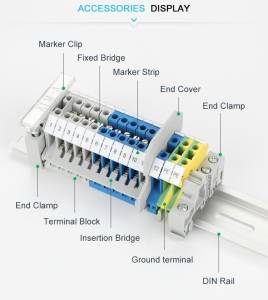

• A wide range of accessories: End covers, End Stoppers, Partition plates, marker trip, fixed bridge, Separating plates, etc.
Technical Parameters
|
Model No. |
JUK 5-HESI,  Fuse terminal block, black |
|
Color |
Black, other color can be customized |
|

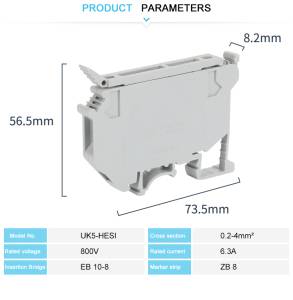

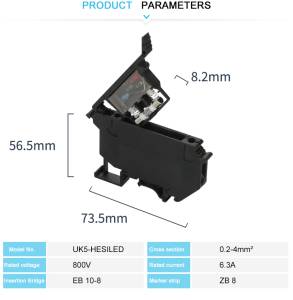

Length / Height / Wide (mm) |
73.5 / 56.5 / 8.2 |
|
Connection method |
Connection by screw tighten |
|
Material |
Nylon PA66 |
|
Rated Voltage / Current |
800V / 6.3A |
|
Cross section, solid / soft Cable |
0.2-4 mm² / 0.2-4 mm² |
|
Conductor Size |
24-12 AWG |
|
Mounting Type |
NS 35 / 7.5 |
|
Standard |
IEC 60947-7-1 |
|
LOGO |
Customized LOGO can be made. |
|
Packing Detail |
17.35g / pc, 50PCS / BOX,1000PCS / CTN |
|
Certification |
CE / RoHS / CQC / ISO 9001 |
