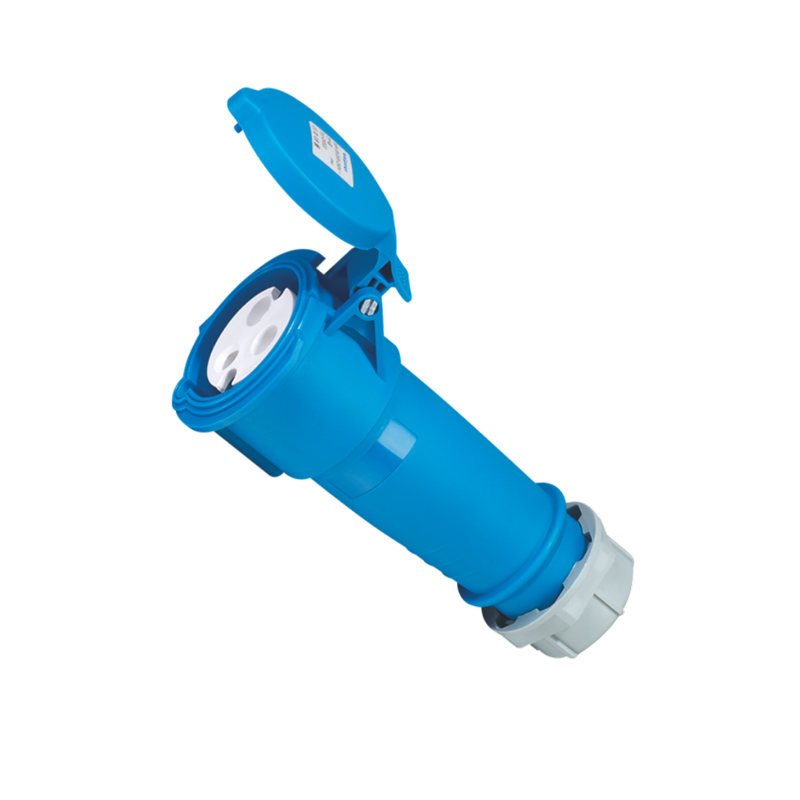

IP44 Industrial Socket Waterproof AC380-415V 2P+E

PRODUCT FEATURES IP44 CEE / IEC Connector

SKU: IP44-C Category: High End Type Industrial Plug Socket Product ID: 19944

Description
Additional Information

Description

PRODUCT FEATURES IP44 CEE / IEC Connector

IP44 CEE / IEC Connector

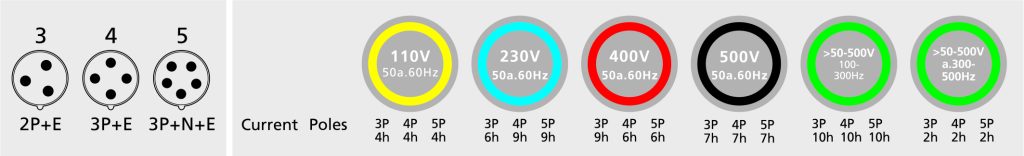

MODEL	16	345	SP509 SP512 SP518	SP510 SP513 SP519	SP511 SP514 SP5	SP515 SP2026	SP2441 SP516 SP2193	SP2517 SP517 SP2495
	32	345	SP521 SP524 SP530	SP522 SP525 SP531	SP523 SP526 SP6	SP527 SP2027	SP2196 SP528 SP2245	SP2674 SP529 SP2493
	63	345	SP1236 SP1239 SP1243	SP1237 SP1240 SP1244	SP1238 SP1241 SP1245	SP1242

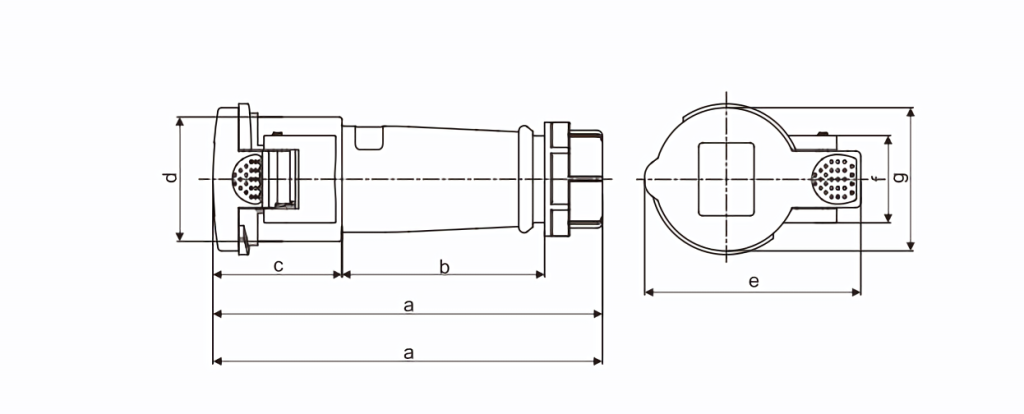

TECHNICAL DATA

Amp	16			32			63
Poles	3	4	5	3	4	5	3	4	5
a	155	156.5	161.7	200	200	205	257	257	257
b	80.6	82.3	88	106.5	106.5	108.7	112.5	112.5	112.5
c	51.3	51.8	52.1	64.2	64.2	65	95	95	95
d	49.5	55.7	63	64.2	64.2	70.8	77.4	77.4	77.4
e	86	90	97	101.8	101.8	111	108	108	108
f	34.7	37	37	37	37	37	34	34	34
g	57	61.2	69	71.6	71.6	79.5	92	92	92
Conductor Cross-Sectional Area (mm²) Min.To Max
	1.5-2.5			4-6			10-16
