Description

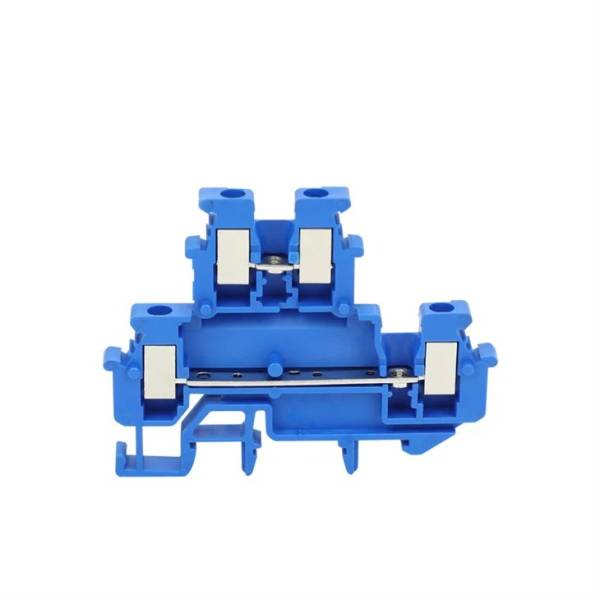

For these multi levels terminal blocks, fixed bridge and test sockets can be used on both levels.
Space saving thanks to compact design; Clear arrangement thanks to marking all of terminal points.
Made from Inflaming retarding PA 66 with brass conductor and pressure house.
Can marking identification tags possible at both levels.
Suitable for broad range of cross-section and types of wires.
With universal foot which can be installed on Din Rail NS 35.

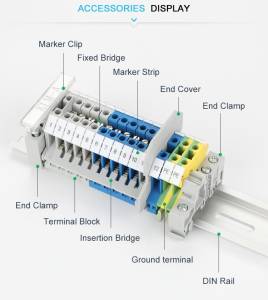

All types of accessories: End cover, End Bracket, Partition plate, Marking holder, fixed bridge, insertion bridge, Separating plate, etc.
Technical Parameters
|
Model No. |
JMBKKB 2.5, Â Multi Levels Terminal Blocks |
|
Color |
Grey, Blue, other color can be customized |
|
Length / Height / Wide (mm) |
62.5 / 47.5 / 5.2 |
|
Connection method |
Connection by screw tighten |
|
Material |
NyloN PA66 |
|
Rated Voltage / Current |
500V / 32A |
|
Cross section, solid / soft Cable |
0.2-4 mm² / 0.2-2.5 mm² |
|
Conductor Size |
24-12 AWG |
|
Mounting Type |
NS 35 / 7.5 |
|
Standard |
IEC 60947-7-1 |
|
Packing Detail |
10.79g / pc, 50pcs / box |
|
Certification |
CE / RoHS / CQC / ISO 9001 |
